Standing Seam

Treat your project to metal cladding’s most iconic look.

One of the most recognisable systems, Standing Seam offers a traditional, refined look, with maximum flexibility. Standing Seam is capable of achieving intricate designs other systems cannot.

Suitable for roof and wall cladding, the system’s concealed fixing technology is ideal for dramatic residential and commercial architectural facades.

For best results, we recommend Standing Seam be installed by experienced cladding professionals, who own and understand the specialist seam closing tools required for correct installation.

25 mm rib height (from base to rib top) / 230 mm, 330 mm and 530 mm cost effective panel widths, rib to rib / Up to 9000 mm long panels / All dimensions are material and transport dependant, and open to customisation.

38 mm rib height (from base to rib top) / 200 mm, 300 mm and 500 mm cost effective panel widths, rib to rib / Up to 9000 mm long panels / All dimensions are material and transport dependant, and open to customisation.

Extensive material suitability. Standing Seam can be rolled in Aluminium, Brass, Copper, Galvanised Steel, Stainless Steel, Steel, Titanium Zinc and Weathering Steel/Corten.

Horizontal, vertical, and diagonal laying patterns, with custom curve options available.

Opt for Double Lock Standing Seam when superior wind loading and/or water penetration resistance is required.

Download data sheet

Request more information

Standing Seam projects

View a different cladding profile

Standing Seam

Wall | Roof

More information

INTERLOCKING

Wall

More information

FLATLOCK

Wall | Roof

More information

SNAPLOCK

Wall | Roof

More information

NAILSTRIP

Wall | Roof

More information

SHINGLE

Wall | Roof

More information

CASSETTE

Wall

More information

BATTEN SEAM

Wall | Roof

More information

CUSTOM FOLDING

Wall | Roof | Misc

More information

Case studies, industry news and so much more ...

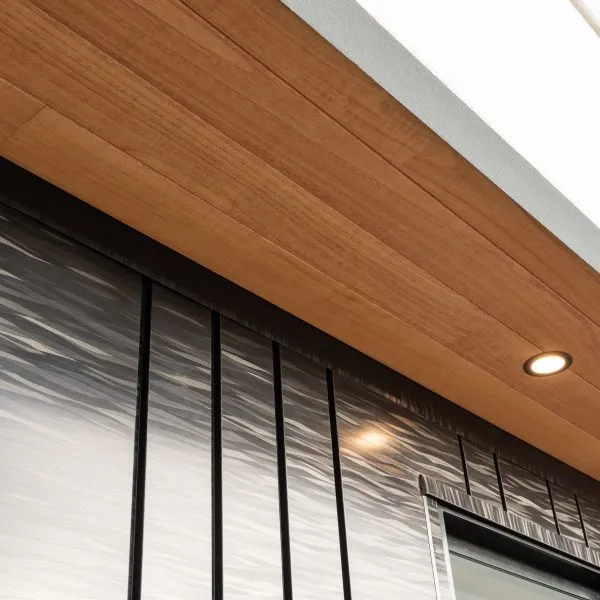

Where Art Meets Steel – UniCote® LUX

Designed to suit Australian high-end architecture, UniCote LUX is a luxury pre-painted steel offering architectural aesthetics that go beyond simple building materials. UniCote® LUX is now available from Metal Cladding…

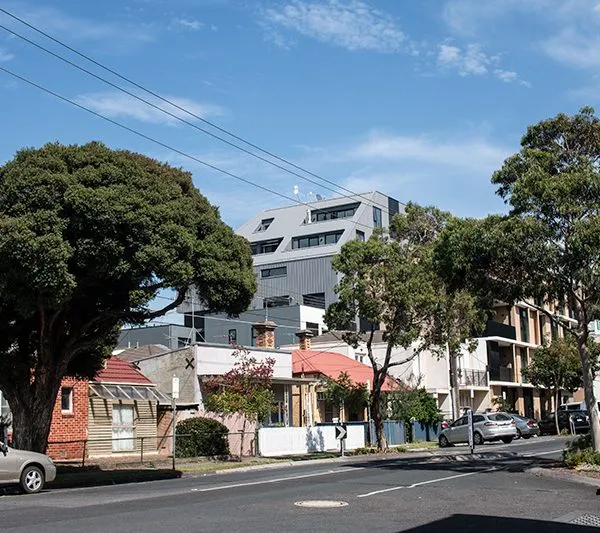

MADE Apartments, Richmond

MADE Apartments Builder and Installer: Team BuildingCladding profile: NailstripMaterial: Colorbond Steel, Metallic Rhea, Metallic Astro and Metallic CelestianArchitect: DKO Architecture

Cleary Street Townhouses

Cleary Street Townhouses Installer: Bayhill RoofingCladding profile: NailstripMaterial: Colorbond Steel, Monument

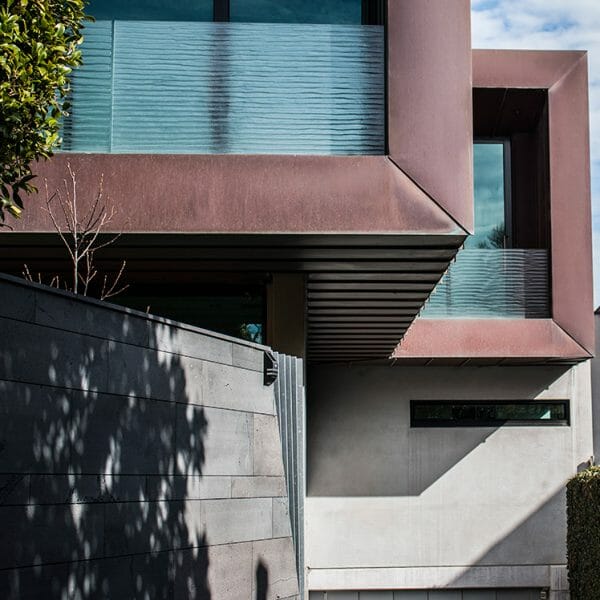

Natural copper – Metal Cladding Systems Material Focus
